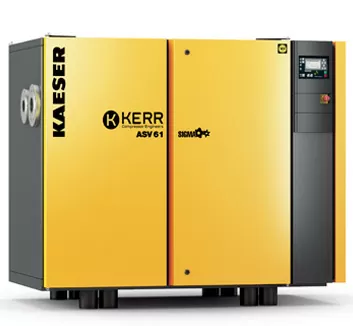

Rotary Screw Vacuum Packages

These connection ready packages are equipped with a specially developed KAESER vacuum airend featuring SIGMA Profile rotors. The ASV | BSV | CSV Series provide single-stage vacuum generation solutions for a variety of applications, including dust extraction, packaging and filling machines, drying, degassing or filtration.

BENEFITS

Energy savings:  An IE3 premium efficiency electric motor combined with the SIGMA profile airend ensure these packages use significantly less power.

Low maintenance and service friendly: Cooling air filter mats protect the interior from dirt, the gas ballast provides enhanced water vapour tolerance, and low speeds extend the service life of all components. Wide opening, front and rear swing access doors and a removable rear panel facilitate effective maintenance.

Quality Components: V-belt drive with automatic tensioning and control; pneumatic inlet valve for intake capacity control; cooling oil pump (gear-type pump); inlet air temperature up to +45°C with cooling

CLEVER COOLING AIR FLOW & HEAT RECOVERY

Vacuum generation produces heat in the airend. This is then absorbed by the cooling oil and discharged into the surrounding ambient air via the oil cooler. The cooling air
also ensures an optimal operating temperature for the drive motor.

The hot exhaust air is directed outwards through the top of the cabinet by the internal fan; from here it is conveyed outside via the exhaust air ducting. Since the main fan
already produces sufficient residual thrust to achieve this, no auxiliary fan is required, thereby saving energy costs and increasing safety.

The discharged exhaust heat can be used for space heating purposes, which serves to reduce heating costs.
